A Study on Solidification Behavior of a High Pressure Die Cast Aluminum Swing Arm Using Commercial Modeling Software To Predict Porosity Level

Abstract

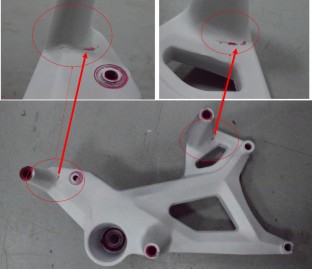

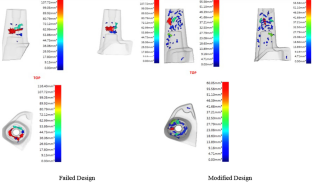

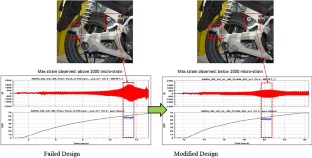

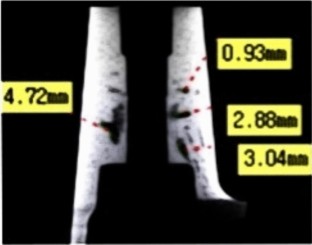

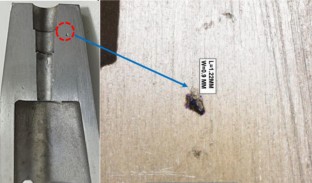

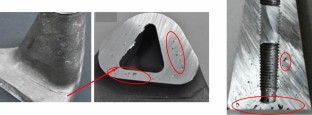

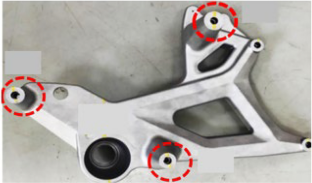

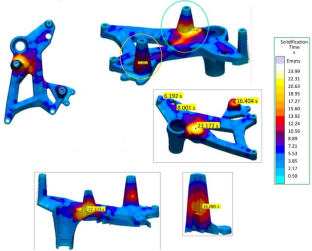

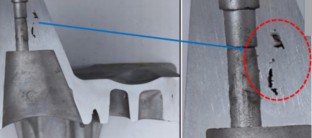

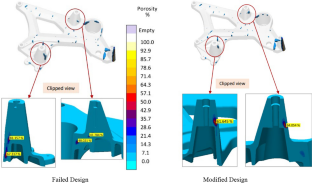

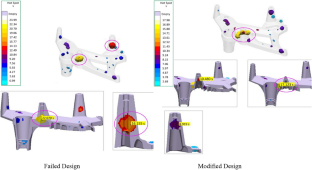

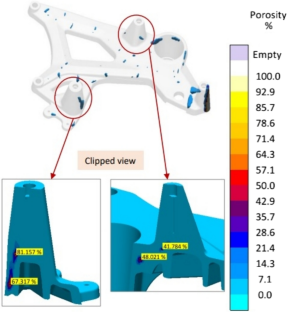

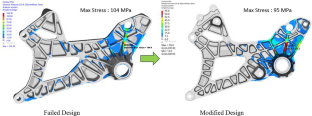

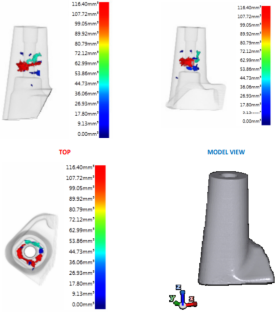

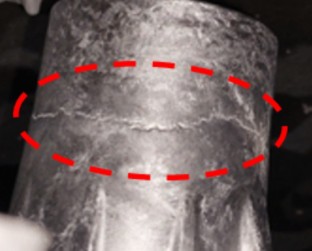

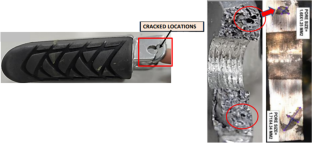

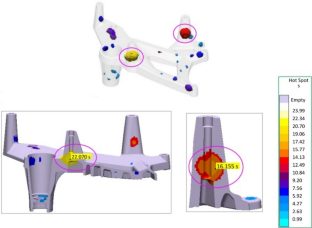

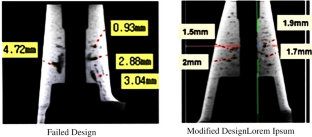

In the automobile industry, aluminum casting is a commonly utilized production process for structural components. However, flaws in aluminum castings can lead to fatigue failures. This research study provides a thorough analysis of the design, development, construction, and testing of a swing arm made of aluminum die-cast (HPDC). The investigation primarily focuses on analyzing the solidification behavior of the swing arm, with a thorough examination of factors such as pore length, solidification time, hot spot distribution, and shrinkage porosity intensity. A commercial simulation software, Magma 5, was used to facilitate design modifications in order to address observed failures. Through design modifications, the solidification time experienced a significant reduction, resulting in a shift of hotspots away from the previously identified cracked region. In addition, substantial decreases in both porosity percentage and intensity were accomplished, confirmed through X-ray and CT scan analyses. After conducting durability testing with a Dynamometer, it was discovered that there was a significant 50% increase in fatigue life when compared to the original design.

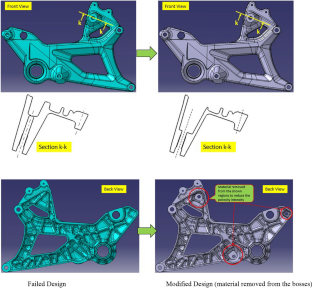

The study highlights the significance of early-stage simulation-driven design adjustments in addressing fatigue failure in HPDC aluminum structures. It was noticed that excessive porosity levels exceeding 8% are the primary factor contributing to this issue. Suggestions involve steering clear of thicker constructions and complexities in part design to reduce porosity. It is also important to consider the location of defects in relation to surface proximity and structural stress zones.

References

  1. Zolotorevskiĭ, Vadim Semenovich, et al. Casting Aluminum Alloys. 1st ed, Elsevier Science, Amsterdam, 2007
  2. Y. Li et al., Analysis of a diesel engine cylinder head failure caused by casting porosity defects’. Eng. Failure Anal. 127, 105498 (2021). https://doi.org/10.1016/j.engfailanal.2021.105498Article Google Scholar
  3. M. Tebaldini et al., Estimation of fatigue limit of a A356–T6 automotive wheel in presence of defects. Proced. Struct. Integr. 7, 521–529 (2017). https://doi.org/10.1016/j.prostr.2017.11.121Article Google Scholar
  4. N. Zhang et al., Parameter optimization of al-5mg-3zn-1cu basin-shaped centrifugal casting: simulation and experimental verification’. Inter. J. Metalcasting 17(2), 900–909 (2023). https://doi.org/10.1007/s40962-022-00822-9Article Google Scholar
  5. Bi, Jiang, et al. Process optimization of a356 aluminum alloy wheel hub fabricated by low-pressure die casting with simulation and experimental coupling Methods. Preprint, SSRN, 2023. https://doi.org/10.2139/ssrn.4365913
  6. M. Jolly, L. Katgerman, Modelling of defects in aluminium cast products. Prog. Mater. Sci.. Mater. Sci. 123, 100824 (2022). https://doi.org/10.1016/j.pmatsci.2021.100824Article Google Scholar
  7. S. Chakravarti, S. Sen, An investigation on the solidification and porosity prediction in aluminium casting process. J. Eng. Appl. Sci. 70(1), 21 (2023). https://doi.org/10.1186/s44147-023-00190-zArticle Google Scholar
  8. W. Dou et al., Fatigue characterization on a cast aluminum beam of a high-speed train through numerical simulation and experiments’. Chin. J. Mech. Eng. 34(1), 108 (2021). https://doi.org/10.1186/s10033-021-00628-6Article Google Scholar
  9. C. Lei et al., Magma software simulation assisted optimization of the casting system of turbocharger castings. Proced. Manuf. 37, 59–65 (2019). https://doi.org/10.1016/j.promfg.2019.12.013Article Google Scholar
  10. H. Cao et al., Kinetic analysis of pore formation in die-cast metals and influence of absolute pressure on porosity’. Vacuum 168, 108828 (2019). https://doi.org/10.1016/j.vacuum.2019.108828Article Google Scholar
  11. L. Patnaik et al., Die casting parameters and simulations for crankcase of automobile using magmasoft. Mater. Today: Proc. 22, 563–571 (2020). https://doi.org/10.1016/j.matpr.2019.08.208Article Google Scholar
  12. R.D. Pehlke, Computer simulation of solidification processes—the evolution of a technology. Metall. and Mater. Trans. A. 33(8), 2251–2273 (2002). https://doi.org/10.1007/s11661-002-0349-1Article Google Scholar
  13. I. Rajkumar, N. Rajini, Metal casting modeling software for small scale enterprises to improve efficacy and accuracy. Mater. Today: Proc. 46, 7866–7870 (2021). https://doi.org/10.1016/j.matpr.2021.02.542Article Google Scholar
  14. J.-f Jiang et al., Numerical simulation of squeeze casting of aluminum alloy flywheel housing with large wall thickness difference and complex shape. Trans. Nonferrous Metals Society China 33(5), 1345–1360 (2023). https://doi.org/10.1016/S1003-6326(23)66187-4Article Google Scholar
  15. Y. Li et al., Casting defects and microstructure distribution characteristics of aluminum alloy cylinder head with complex structure. Materials Today Commu. 27, 102416 (2021). https://doi.org/10.1016/j.mtcomm.2021.102416Article Google Scholar
  16. M. Wicke et al., Characterization of casting pores in Fe-Rich Al-Si-Cu alloys by Microtomography and finite element analysis. Proced. Struct. Integr 2, 2643–2649 (2016). https://doi.org/10.1016/j.prostr.2016.06.330Article Google Scholar
  17. X.Y. Jiao et al., Fracture behavior of a high pressure die casting alsi10mnmg alloy with varied porosity levels. J. Market. Res. 25, 1129–1140 (2023). https://doi.org/10.1016/j.jmrt.2023.05.281Article Google Scholar
  18. P. Mu et al., Influence of casting defects on the fatigue behavior of cast aluminum AS7G06-T6’. Int. J. Fatigue 63(97), 109 (2014). https://doi.org/10.1016/j.ijfatigue.2014.01.011Article Google Scholar
  19. X. Jiao et al., On the characterization of microstructure and fracture in a high-pressure die-casting Al-10 wt%Si Alloy. Prog. Natural Sci. Mater. Int. 30(2), 221–228 (2020). https://doi.org/10.1016/j.pnsc.2019.04.008Article Google Scholar
  20. J. Wang et al., Crack configuration feature and fracture surface difference for high pressure die casting hypereutectic al-si alloys in high cycle fatigue. Int. J. Fatigue 153, 106469 (2021). https://doi.org/10.1016/j.ijfatigue.2021.106469Article Google Scholar
  21. H.D. Zhao et al., Experimental and numerical analysis of gas entrapment defects in plate ADC12 die castings. J. Mater. Process. Technol. 209(9), 4537–4542 (2009). https://doi.org/10.1016/j.jmatprotec.2008.10.028Article Google Scholar
  22. B. Yang et al., Tension-compression mechanical behavior and corresponding microstructure evolution of cast A356–T6 aluminum alloy’. Mater. Sci. Eng. A 821, 141613 (2021). https://doi.org/10.1016/j.msea.2021.141613Article Google Scholar
  23. W. Du et al., A Novel Method for Structure’s Fatigue Life Scatter Simulation under Material Variability’. Int. J. Fatigue 149, 106296 (2021). https://doi.org/10.1016/j.ijfatigue.2021.106296Article Google Scholar
  24. Y.-c Duan et al., Numerical prediction of fatigue life of an a356–t6 alloy wheel considering the influence of casting defect and mean stress. Eng. Failure Analysis 118, 104903 (2020). https://doi.org/10.1016/j.engfailanal.2020.104903Article Google Scholar
  25. P. Osmond et al., Effect of porosity on the fatigue strength of cast aluminium alloys: from the specimen to the structure’. Proced. Eng. 213, 630–643 (2018). https://doi.org/10.1016/j.proeng.2018.02.059Article Google Scholar
  26. U.A. Dabade, R.C. Bhedasgaonkar, Casting defect analysis using design of experiments (DoE) and computer aided casting simulation technique. Procedia CIRP 7, 616–621 (2013). https://doi.org/10.1016/j.procir.2013.06.042Article Google Scholar
  27. M. Avalle, Casting defects and fatigue strength of a die cast aluminium alloy: a comparison between standard specimens and production components. Int. J. Fatigue 24(1), 1–9 (2002). https://doi.org/10.1016/S0142-1123(01)00112-8Article Google Scholar
  28. M.V. Santosh et al., Mechanical characterization and microstructure analysis of al C355.0 by sand casting, die casting and centrifugal casting techniques. Material. Today: Proc. 4(10), 10987–10993 (2017). https://doi.org/10.1016/j.matpr.2017.08.056Article Google Scholar
  29. D.M. Maijer et al., An investigation of predictive control for aluminum wheel casting via a virtual process model. J. Mater. Process. Technol. 209(4), 1965–1979 (2009). https://doi.org/10.1016/j.jmatprotec.2008.04.057Article Google Scholar
  30. B. Dybowski et al., Effects of die-casting defects on the blister formation in high-pressure die-casting aluminum structural components. Eng Failure Analysis 150, 107223 (2023). https://doi.org/10.1016/j.engfailanal.2023.107223Article Google Scholar
  31. S.A. Hassasi et al., Parametric Investigation of Squeeze Casting Process on the Microstructure Characteristics and Mechanical Properties of A390 Aluminum Alloy. Int. J. Metalcast.Metalcast. 14(1), 69–83 (2020). https://doi.org/10.1007/s40962-019-00325-0Article Google Scholar
  32. Ö. Boydak et al., A Numerical and an experimental investigation of a high-pressure die-casting aluminum alloy. Int. J. Metalcasting 10(1), 56–69 (2016). https://doi.org/10.1007/s40962-015-0004-4Article Google Scholar
  33. D. Sui et al., Effect of cooling process on porosity in the aluminum alloy automotive wheel during low-pressure die casting. Int. J. Metalcasting 10(1), 32–42 (2016). https://doi.org/10.1007/s40962-015-0008-0Article Google Scholar
  34. B. Yalçin et al., Effect of injection parameters and vacuum on the strength and porosity amount of die-casted A380 alloy. Int J. Metalcasting 11(2), 195–206 (2017). https://doi.org/10.1007/s40962-016-0046-2Article MathSciNet Google Scholar
  35. M.Y. Hu et al., Flow modeling in high-pressure die-casting Processes using SPH model”. Int. J. Metalcasting 12(1), 97–105 (2018). https://doi.org/10.1007/s40962-017-0144-9Article Google Scholar
  36. T. Vossel et al., Influence of die temperature control on solidification and the casting process. Int. J. Metalcasting 14(4), 907–925 (2020). https://doi.org/10.1007/s40962-019-00391-4Article Google Scholar
  37. D. Cica, D. Kramar, Intelligent process modeling and optimization of porosity formation in high-pressure die casting. Int. J. Metalcasting 12(4), 814–824 (2018). https://doi.org/10.1007/s40962-018-0213-8Article Google Scholar
  38. W. Kasprzak et al., The effect of the melt temperature and the cooling rate on the microstructure of the al-20% si alloy used for monolithic engine blocks. Int. J. Metalcasting 3(3), 55–71 (2009). https://doi.org/10.1007/BF03355453Article MathSciNet Google Scholar
  39. D. Concer, P.V.P. Marcondes, Experimental and numerical simulation study of porosity on high-pressure aluminum die casting process. J. Brazilian Soc. Mechanich Sci. and Eng. 39(8), 3079–3088 (2017). https://doi.org/10.1007/s40430-016-0672-xArticle Google Scholar
  40. Jakumeit, J., et al. 2012 Simulation-Based Prediction of Micro-Shrinkage Porosity in Aluminum Casting: Fully-Coupled Numerical Calculation vs. Criteria Functions IOP Conference Series: Materials Science and Engineering, 27 012066. https://doi.org/10.1088/1757-899X/27/1/012066.

Download references
