Properties of Engineering Materials

A Design Engineer's Guide to Material Properties: Mastering the Fundamentals for Optimal Performance

This technical brief is based on the academic chapter "Chapter 6: Properties of Engineering Materials" by Theodore Gela, D.Eng.Sc., from the MECHANICAL DESIGN HANDBOOK. It is summarized and analyzed for HPDC professionals by the experts at CASTMAN.

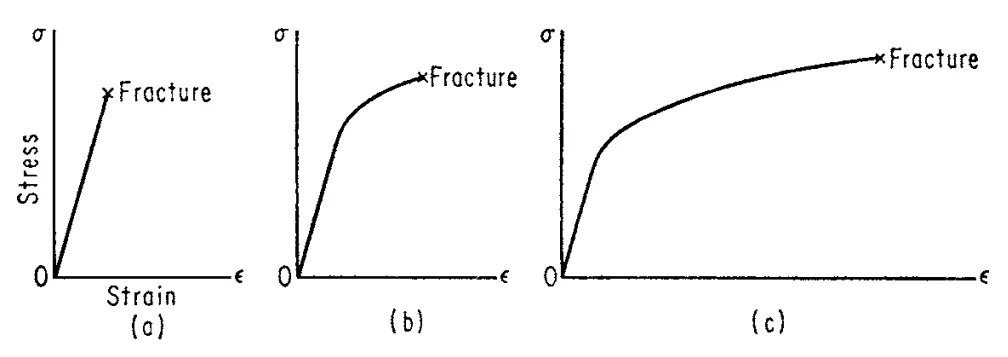

FIG. 6.1 Portions of tensile stress -strain  curves in metals.1 (a) Elastic behavior. (b) Elastic and plastic behaviors.
FIG. 6.1 Portions of tensile stress -strain  curves in metals.1 (a) Elastic behavior. (b) Elastic and plastic behaviors.

Keywords

  • Primary Keyword: Material Selection for Engineering Design
  • Secondary Keywords: Engineering Material Properties, Tensile Strength, Heat Treatment, Cold Working, Residual Stress, Fatigue Properties, Phase Diagrams

Executive Summary

  • The Challenge: Selecting the right material for a component is a critical design decision that directly impacts performance, reliability, and cost. Engineers need a systematic way to evaluate materials based on a wide range of properties and service conditions.
  • The Method: This comprehensive guide outlines the fundamental principles of material science, covering everything from atomic structure and mechanical properties to the effects of thermal treatments and environmental interactions.
  • The Key Breakthrough: The chapter emphasizes that a material's properties are not static; they are profoundly altered by processes like cold working, heat treatment, and even surface finishing. Understanding and controlling these changes is key to optimizing a component's design and service life.
  • The Bottom Line: A holistic understanding of material properties—elastic, plastic, time-dependent, and fracture-related—is essential for moving beyond standardized data and designing components that are truly optimized for their specific application.

The Challenge: Why This Research Matters for HPDC Professionals

For decades, engineers have strived to design components that are lighter, stronger, and more durable. The success of any design, whether for an automotive transmission case or an aerospace structural part, hinges on the correct choice of material. However, simply picking a material from a datasheet based on its ultimate tensile strength is insufficient and often leads to premature failure. As stated in Section 6.1, "The selection of materials for engineering components and devices depends upon knowledge of material properties and behavior in particular environmental states."

Engineers face the constant challenge of accounting for a multitude of factors: Will the part experience cyclic loading? What are the operating temperatures? Will it be exposed to a corrosive environment? How will manufacturing processes like machining or grinding affect its surface integrity? This guide provides a foundational framework for answering these questions, moving from a simplistic view of materials to a sophisticated understanding of their behavior.

The Approach: Unpacking the Methodology

This chapter serves as a comprehensive overview of the principles governing engineering materials. It synthesizes decades of established research into a coherent guide for design engineers. The approach is to systematically build knowledge from the ground up:

  1. Fundamental Structure: It begins with the atomic arrangements in metals (Section 6.3), explaining how the basic crystal structure (e.g., bcc, fcc) influences fundamental properties like ductility and brittle transition.
  2. Mechanical Testing: It details the standard tensile test (Section 6.2) as the baseline for determining key properties like yield strength, ultimate tensile strength, and modulus of elasticity.
  3. Property Alteration: It then explores the primary mechanisms used to alter these base properties, including plastic deformation (cold working), annealing, heat treatment, and surface hardening.
  4. Failure Analysis: Finally, it addresses critical failure modes like fatigue (Section 6.13), impact fracture (Section 6.12), and creep (Section 6.15), providing criteria for selecting materials to resist these failures.

The methodology is to present standardized test data and then explain the underlying metallurgical phenomena that produce those results, empowering the engineer to make more informed decisions.

The Breakthrough: Key Findings & Data

This guide consolidates several critical concepts that are essential for modern component design.

  • Properties are Not Intrinsic: A key theme is that a material's final properties are a direct result of its processing history. Figure 6.13 clearly shows how cold drawing significantly increases the yield and tensile strength of steel while reducing its ductility. This demonstrates that "cold work" is a powerful design tool.

  • Temperature is a Critical Variable: The mechanical properties of materials are highly dependent on temperature. Figure 6.5 illustrates the dramatic drop in strength for steel and aluminum alloys at elevated temperatures, highlighting the need for specialized high-temperature materials and design criteria like creep and stress-rupture (Section 6.15).

  • Residual Stresses Dictate Performance: Manufacturing processes induce residual stresses that can either enhance or degrade performance. Figure 6.29 shows that "abusive grinding" can create high tensile residual stresses just below the surface, which can be detrimental to fatigue life. Conversely, treatments like shot peening that induce compressive stresses can significantly improve fatigue strength (Figure 6.31).

  • Heat Treatment Unlocks Potential: Heat treatment is one of the most powerful tools for tailoring material properties. The guide explains how different cooling rates from the austenite phase in steel can produce structures ranging from soft pearlite to extremely hard martensite (Figure 6.20). This principle of controlled transformation is fundamental to achieving desired hardness and toughness in many alloy systems.

Practical Implications for Your HPDC Operations

While much of the chapter uses steel as a primary example, the underlying principles are directly applicable to the aluminum, zinc, and magnesium alloys common in high-pressure die casting.

  • For Process Engineers: The findings on heat treatment (Section 6.8) and property changes from cold working (Section 6.5) are critical. The principles of solution heat treatment, quenching, and aging described for nonferrous alloys (Section 6.7) are the basis for achieving T5 or T6 tempers in aluminum castings. Understanding these processes allows for the precise control of final mechanical properties.

  • For Quality Control: The discussion on residual stresses (Section 6.11) is highly relevant. Post-casting operations like machining or grinding can induce surface stresses that impact fatigue life. The X-ray diffraction techniques mentioned for measuring these stresses (Figure 6.28) provide a quantitative tool for ensuring that finishing processes are not compromising the part's integrity.

  • For Die Design: The principles of material flow and plastic deformation (Section 6.4) are analogous to metal flow within the die. Furthermore, understanding the fatigue characteristics of materials (Section 6.13) is essential not only for the part being cast but also for the H13 tool steel used to make the die itself, ensuring a long and reliable tool life. The emphasis on avoiding sharp corners to prevent stress raisers in heat-treated parts (Figure 6.22) is a core tenet of good die casting design.


Paper Details

Chapter 6: Properties of Engineering Materials

1. Overview:

  • Title: Properties of Engineering Materials
  • Author: Theodore Gela, D.Eng.Sc.
  • Year of publication: The provided text is from a 2006 digital version of the Mechanical Design Handbook. The content and references suggest the original work is from the mid-to-late 20th century.
  • Journal/academic society of publication: Mechanical Design Handbook, The McGraw-Hill Companies.
  • Keywords: Material Selection, Strength Properties, Atomic Arrangements, Plastic Deformation, Annealing, Phase Diagrams, Heat Treatment, Surface Hardening, Prestressing, Residual Stress, Impact Properties, Fatigue, High-Temperature Properties, Low-Temperature Properties, Radiation Damage.

2. Abstract:

This chapter does not contain a formal abstract. It serves as a comprehensive guide to the properties of engineering materials for design purposes. It covers the criteria for material selection, the definition and measurement of mechanical properties, the influence of atomic structure, and the effects of processing (such as cold working, annealing, and heat treatment) on material behavior. It also details specialized topics including fatigue, creep, impact properties, and behavior at extreme temperatures.

3. Introduction:

The introduction (Section 6.1) establishes that the selection of materials for engineering components depends on a thorough knowledge of material properties and their behavior in specific environments. It outlines the key considerations for material selection, which include:
1. Elastic properties (stiffness)
2. Plastic properties (yield conditions)
3. Time-dependent properties (creep, relaxation)
4. Fracture phenomena (fatigue, crack propagation)
5. Thermal properties
6. Chemical interactions (corrosion, oxidation)

4. Summary of the study:

Background of the research topic:

The chapter is built on the premise that advancing technology requires engineers to have a basic, structured approach to relating material properties to their underlying structure. It is advantageous for designers to understand how mechanical, thermal, and metallurgical treatments alter a material's structure and, consequently, its performance, helping to lessen the likelihood of premature failure in service.

Status of previous research:

The chapter synthesizes well-established, foundational concepts in metallurgy and materials science, drawing from numerous sources including the American Society for Metals (now ASM International), United States Steel Co., and other authoritative texts and handbooks from the mid-20th century. It represents a consolidation of standard industry knowledge and testing practices of that era.

Purpose of the study:

The purpose is to provide design engineers with a practical and fundamental guide to selecting and specifying materials. It aims to bridge the gap between theoretical metallurgy and practical design by explaining how and why material properties change with processing and how these changes can be controlled to meet stringent engineering requirements.

Core study:

The core of the chapter is a systematic exploration of material properties and the factors that influence them. It covers:
- Mechanical Properties: Tensile, shear, impact, and fatigue properties.
- Metallurgical Structure: Crystalline structures (bcc, fcc, hcp), phase diagrams, and their role in determining alloy behavior.
- Processing Effects: Detailed analysis of how cold working, annealing, heat treatment, and surface treatments (carburizing, nitriding) modify the microstructure and mechanical properties of materials.
- Environmental Effects: Considerations for high and low-temperature applications, including creep, stress-rupture, and ductile-to-brittle transitions.
- Residual Stress: An examination of how residual stresses are induced and measured, and their significant impact on fatigue and bending properties.

5. Research Methodology

Research Design:

The chapter is structured as a descriptive and explanatory guide. It does not follow a single experimental design but instead presents a collection of established data, principles, and standardized test results. The methodology is to:
1. Define a material property (e.g., yield strength).
2. Describe the standard test used to measure it (e.g., the tensile test).
3. Present typical data in figures and tables (e.g., Table 6.1, Figure 6.1).
4. Explain the underlying scientific principles (e.g., dislocation movement, phase transformations).

Data Collection and Analysis Methods:

The data presented is compiled from numerous authoritative sources, including industry handbooks, standards organizations (like ASTM and SAE), and corporate research publications. Data is presented graphically to show relationships between variables, such as stress vs. strain, temperature vs. strength, or processing vs. hardness.

Research Topics and Scope:

The scope is broad, covering the essential properties of common engineering materials, with a strong focus on metals, particularly steels. The topics range from fundamental atomic arrangements to complex phenomena like high-temperature creep and radiation damage. It also includes extensive data tables for various metals, alloys, ceramics, and plastics.

6. Key Results:

Key Results:

  • Material selection must be based on a wide range of criteria beyond simple strength, including stiffness, time-dependent effects, fracture phenomena, and environmental interactions (Section 6.1).
  • The atomic structure of a metal (bcc, fcc, hcp) is a fundamental predictor of its properties, such as the tendency for ductile-to-brittle transition in bcc metals (Section 6.3).
  • Plastic deformation (cold work) is a primary mechanism for hardening pure metals and single-phase alloys, increasing strength at the expense of ductility (Section 6.5, Figure 6.13).
  • Residual stresses induced by manufacturing can be highly detrimental or beneficial. Tensile residual stresses from processes like abusive grinding reduce fatigue life, while compressive stresses from shot peening improve it (Sections 6.11, 6.13).
  • Heat treatment offers a powerful method to control the microstructure and properties of alloys. For steels, this involves controlled decomposition of austenite into various products like pearlite, bainite, or martensite, each with distinct properties (Section 6.8, Figure 6.20).
  • For high-temperature applications, design must be based on time-dependent properties like creep and stress-rupture, not short-time tensile strength (Section 6.15, Figure 6.38).

Figure Name List:

FIG. 6.2 The effects of treatments on tensile characteristics of a metal.1 (a) Perfectly brittle (embrittled)—all elastic behavior. (b) Low ductility (hardened)—elastic plus plastic behaviors. (c) Ductile (softened)—elastic plus much plastic behaviors.
FIG. 6.2 The effects of treatments on tensile characteristics of a metal.1 (a) Perfectly brittle (embrittled)—all elastic behavior. (b) Low ductility (hardened)—elastic plus plastic behaviors. (c) Ductile (softened)—elastic plus much plastic behaviors.
FIG. 6.16 The iron-carbon phase diagram.4
FIG. 6.16 The iron-carbon phase diagram.4
FIG. 6.23 Effect of tempering temperature on the hardnesses of SAE 1045, T1345, and 4045 steels. In the high-speed tool steel 18-4-1, secondary hardening occurs at about 1050°F.9
FIG. 6.23 Effect of tempering temperature on the hardnesses of SAE 1045, T1345, and 4045 steels. In the high-speed tool steel 18-4-1, secondary hardening occurs at about 1050°F.9
  • FIG. 6.1 Portions of tensile stress o-strain e curves in metals.
  • FIG. 6.2 The effects of treatments on tensile characteristics of a metal.
  • FIG. 6.3 Typical tensile-test fractures.
  • FIG. 6.4 Effects of strain rates and temperatures on tensile-strength properties of copper and aluminum.
  • FIG. 6.5 Effects of temperatures on tensile properties.
  • FIG. 6.6 Cell structure.
  • FIG. 6.7 Magnetic anisotropy in a single crystal of iron.
  • FIG. 6.8 Slip deformation in single crystals.
  • FIG. 6.9 Edge and screw dislocations as types of imperfections in metals.
  • FIG. 6.10 The Bauschinger effect.
  • FIG. 6.11 Directionality in ductility in cold-worked and annealed copper sheet.
  • FIG. 6.12 The earing tendencies in cup deep drawn from sheet.
  • FIG. 6.13 Effect of cold drawing on the tensile properties of steel bars.
  • FIG. 6.14 Residual stress.
  • FIG. 6.15 The property changes in 95 percent cold-worked iron with heating temperatures (1 h).
  • FIG. 6.16 The iron-carbon phase diagram.
  • FIG. 6.17 Relation of mechanical properties and structure to carbon content of slowly cooled carbon steels.
  • FIG. 6.18 Binary systems.
  • FIG. 6.19 Approximate comparison of materials on a strength-weight basis from room temperature to 1000°F.
  • FIG. 6.20 Isothermal transformation diagram.
  • FIG. 6.21 Relation of maximum attainable hardness of quenched steels to carbon content.
  • FIG. 6.22 Examples of good and bad designs for heat-treated parts.
  • FIG. 6.23 Effect of tempering temperature on the hardnesses of SAE 1045, T1345, and 4045 steels.
  • FIG. 6.24 In the tempering of this 4140 steel the notched-bar impact properties decrease in the range of 450 to 650°F.
  • FIG. 6.25 The most probable properties of tempered martensite for a variety of low-alloy steels.
  • FIG. 6.26 Hardenability curves for different steels with the same carbon content.
  • FIG. 6.27 Relation of time and temperature to carbon penetration in gas carburizing.
  • FIG. 6.28 Induced residual stress pattern by localized spot welding.
  • FIG. 6.29 Induced stresses in grinding ASAI 4340 steel heat-treated to Rockwell C 50.
  • FIG. 6.30 Effect of severity of surface grinding of hardened 4340 Rockwell C (50) steel.
  • FIG. 6.31 Improved fatigue strength by shot-peening and nitriding 4340 hardened crankshafts.
  • FIG. 6.32 The ductile-to-brittle transition in impact.
  • FIG. 6.33 Influence of testing temperature on notch toughness.
  • FIG. 6.34 Fatigue curves.
  • FIG. 6.35 Typical creep curves.
  • FIG. 6.36 Correlation of creep and rupture test data for type 316 stainless steel.
  • FIG. 6.37 Stress vs. rupture time for type 316 stainless steel.
  • FIG. 6.38 Properties of type 316 stainless steel.
  • FIG. 6.39 Improved thermal fatigue resistance and stress-rupture properties of directionally solidified (DS) and isotropic superalloy (IS).
  • FIG. 6.40 Strength and ductility of refractory metals at low temperatures.
  • FIG. 6.41 Yield-strength-to-density ratios related to temperature for some alloys of interest in cryogenic applications.
  • FIG. 6.42 Effect of irradiation on stress-strain curves of Fe single crystals.
  • FIG. 6.43 Hardness conversion curves for steel.

7. Conclusion:

The chapter does not have a single concluding section, but the overarching conclusion is that effective mechanical design requires a deep and integrated understanding of materials science. A designer cannot simply select a material but must specify the entire processing route—from alloying and forming to heat treatment and surface finishing—to ensure the final component has the required properties to perform reliably and safely in its intended service environment. The provided data and principles serve as the essential toolkit for achieving this.

8. References:

  • The chapter lists 39 references, citing works from sources such as "Metals Handbook," "National Bureau of Standards," "Welding Journal," and various books on metallurgy, corrosion, and material properties published between 1940 and 1981.

Conclusion & Next Steps

This research provides a valuable roadmap for mastering the fundamental principles of material properties that drive successful component design. The findings offer a clear, data-driven path toward improving quality, reducing defects, and optimizing production by treating material selection and processing as an integrated system.

At CASTMAN, we are dedicated to applying the latest industry research to solve our customers' most challenging die casting problems. If the issues discussed in this paper resonate with your operational goals, contact our engineering team to discuss how we can help you implement these advanced principles in your components.

Expert Q&A: Your Top Questions Answered

Q1: What are the most important criteria to consider when selecting a material for a new design?
A1: According to Section 6.1, the primary considerations are (1) Elastic properties (stiffness), (2) Plastic properties (yield conditions), (3) Time-dependent properties (creep, relaxation), (4) Fracture phenomena (fatigue), (5) Thermal properties, and (6) Chemical interactions with the environment (corrosion).

Q2: How does cold working, like drawing or rolling, change a material's mechanical properties?
A2: As detailed in Section 6.5 and shown in Figure 6.13, cold working is used to strengthen metals. The process increases the tensile and yield strengths while simultaneously decreasing ductility (percent elongation).

Q3: The chapter talks a lot about residual stress. Why is it so important for a cast or machined part?
A3: Section 6.11 explains that the presence of residual stresses, especially at the surface, can significantly affect fatigue and bending properties. Tensile residual stresses (often from machining or grinding) can promote crack nucleation and reduce fatigue life, while induced compressive stresses (from shot peening) can improve it.

Q4: What is the main purpose of heat treating a metal part?
A4: As described in Section 6.8, the heat-treating process for steel (and by extension, other alloys) is used to alter the microstructure to achieve specific properties. This can be done to increase strength and hardness, improve toughness, or relieve stresses resulting from prior operations.

Q5: The chapter mentions a "ductile-to-brittle transition." What does that mean for parts used in cold environments?
A5: Section 6.12 explains that some materials, particularly those with a bcc crystal structure, can transition from a tough, ductile behavior to a fragile, brittle behavior as the temperature drops. As shown in Figure 6.32, this occurs over a "transition temperature range," and it is critical to select materials that remain ductile at their lowest anticipated service temperature to avoid catastrophic failure.

Q6: What is the direct, practical takeaway from this chapter for a die casting facility?
A6: The core takeaway, based on the chapter "Properties of Engineering Materials", is that the final properties of a cast component are not determined by its alloy composition alone. They are a product of the entire manufacturing process, including heat treatment (e.g., T6 temper), the control of residual stresses from machining, and design choices that minimize stress concentrations. Mastering these principles is key to producing high-performance, reliable die-cast parts.
