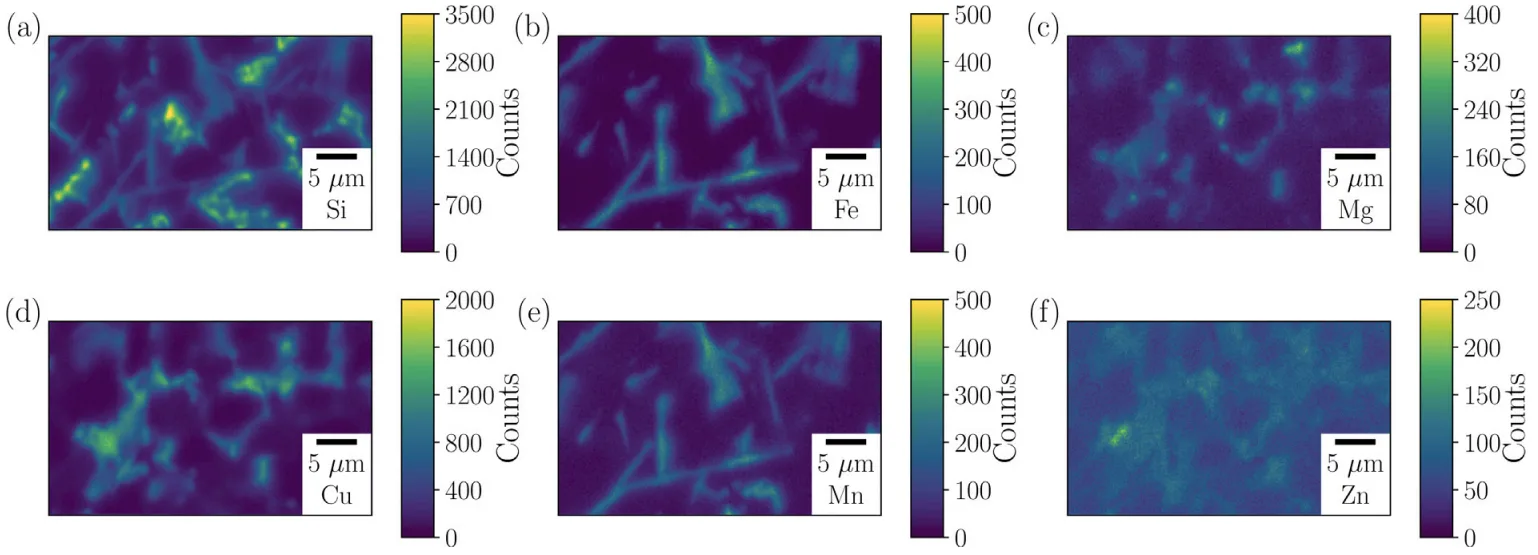

Fig. 5. EPMA-mappings of 1 mm samples cast from alloy 226D without Sr addition for the main alloying elements: (a) Si, (b) Fe, (c) Mg, (d) Cu, (e) Mn and (f) Zn

Published at 1538 × 555 in Increasing the conductivity of aluminium high-pressure die casting alloy AlSi9Cu3Fe (226D) by Sr modification of eutectic and intermetallic phases
