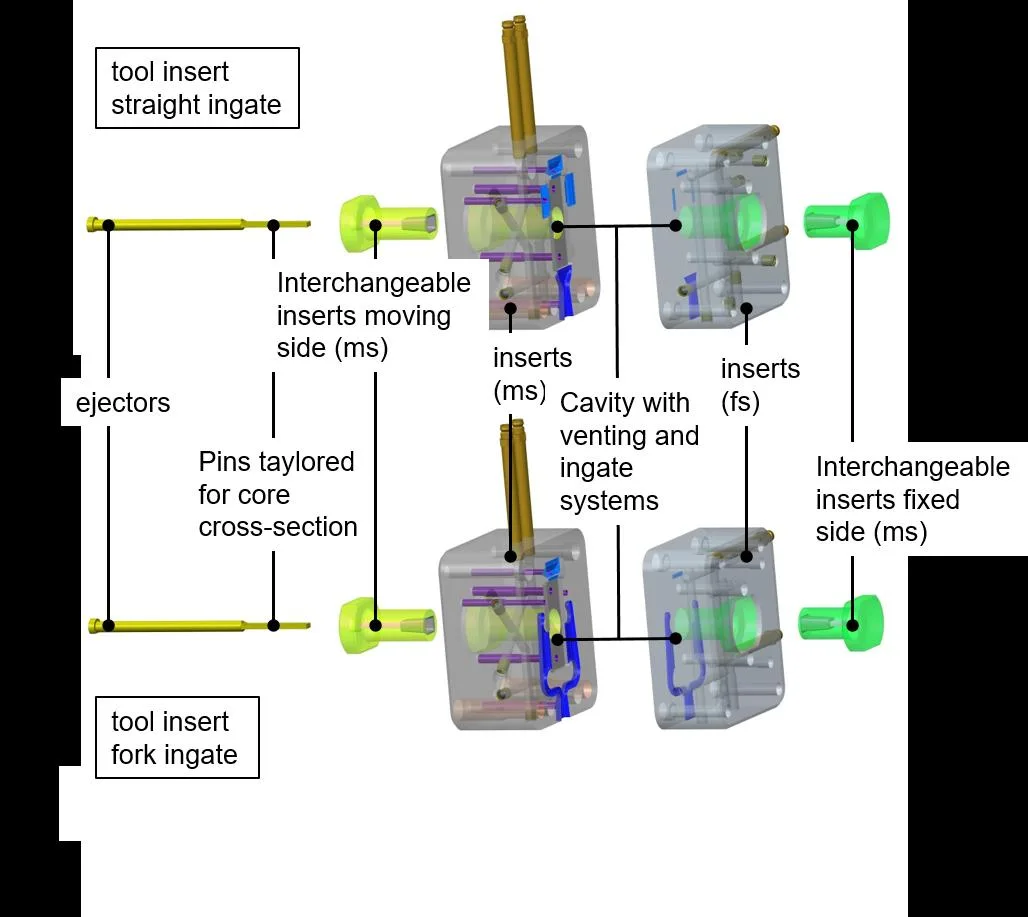

Blog Post Image: Figure 8: The tool concept for validation of the simulations in high-pressure die casting experiments. There is always a pair of inserts for the moving side (ms) and the fixed side (fs); (a) is the setup for the straight ingate, (b) represents the tooling parts for the fork ingate

Published at 1028 × 917 in Figure 8: The tool concept for validation of the simulations in high-pressure die casting experiments. There is always a pair of inserts for the moving side (ms) and the fixed side (fs); (a) is the setup for the straight ingate, (b) represents the tooling parts for the fork ingate

Figure 8: The tool concept for validation of the simulations in high-pressure die casting experiments. There is always a pair of inserts for the moving side (ms) and the fixed side (fs); (a) is the setup for the straight ingate, (b) represents the tooling parts for the fork ingate

Figure 8: The tool concept for validation of the simulations in high-pressure die casting experiments. There is always a pair of inserts for the moving side (ms) and the fixed side (fs); (a) is the setup for the straight ingate, (b) represents the tooling parts for the fork ingate

Figure 8: The tool concept for validation of the simulations in high-pressure die casting experiments. There is always a pair of inserts for the moving side (ms) and the fixed side (fs); (a) is the setup for the straight ingate, (b) represents the tooling parts for the fork ingate
