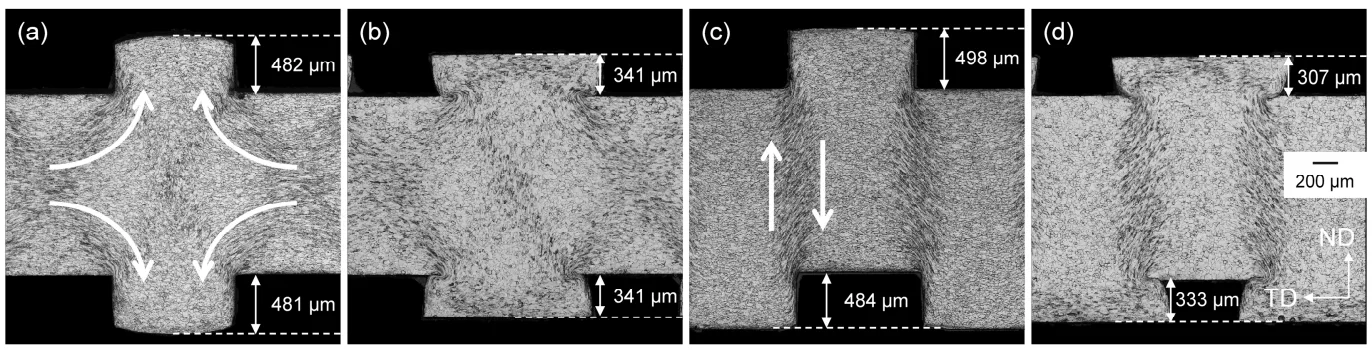

Figure 7. Close-up cross-section measurement examples of (a) structural rolling, mirrored, (b) flattening, mirrored, (c) structural rolling, shifted, (d) flattening, shifted.
