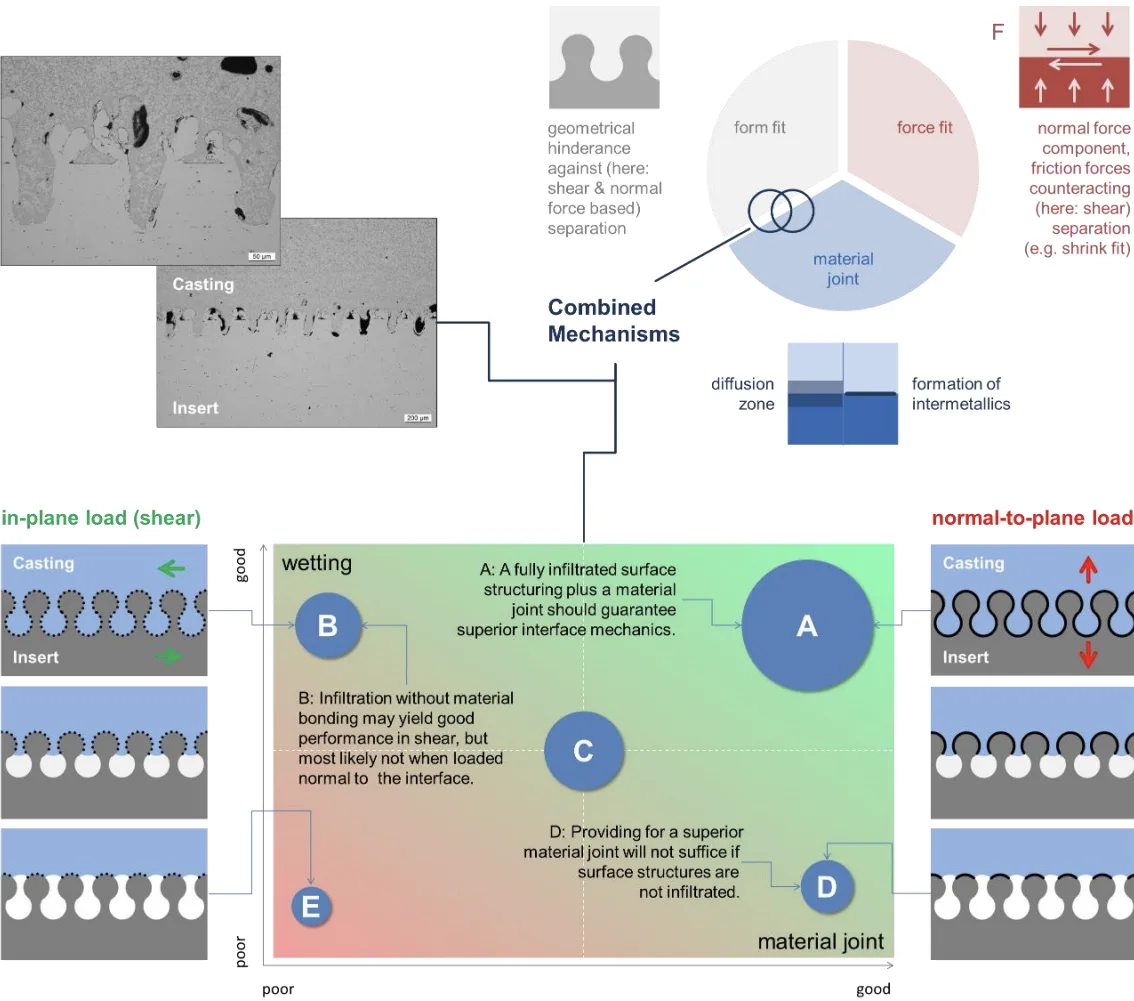

Figure 5. An overview of principles controlling strength in compound casting. The image in the top left corner shows metallographic sections of infiltrated surface structures created via laser pulses to facilitate a micro-scale form fit. E in the image marks the worst case, poor wetting and bonding, while C denotes the middle position. More interesting are the extreme cases described in the image
