Unlocking High-Strength AA7075 for Thixoforming: A Guide to Optimizing Cooling Slope Casting Parameters
This technical summary is based on the academic paper "Optimization of the cooling slope casting parameters for producing aa7075 wrought aluminum alloy thixotropic feedstock" by E.Y.El-Kady, I.S.El-Mahallawi, T.S.Mahmoud, A.Attia, S.S.Mohammed, and A.Monir, published in Materials Science An Indian Journal (2016).
Keywords
- Primary Keyword: Cooling Slope Casting Optimization
- Secondary Keywords: Thixoforming, AA7075 aluminum alloy, globular microstructure, process parameters, thixotropic feedstock
Executive Summary
- The Challenge: Thixoforming high-strength wrought alloys like AA7075 is difficult because their natural dendritic microstructure is unsuitable for semi-solid processing.
- The Method: The study employed a 3-level factorial Design of Experiment (DOE) to systematically optimize three key cooling slope (CS) casting parameters: pouring temperature, cooling length, and slope angle.
- The Key Breakthrough: The research identified the optimal process window—650°C pouring temperature, 350 mm cooling length, and a 45° tilt angle—to produce a feedstock with the finest grain size and highest globularity.
- The Bottom Line: Pouring temperature is the single most dominant factor controlling the final microstructure, and the developed regression models can accurately predict feedstock quality for industrial applications.
The Challenge: Why This Research Matters for HPDC Professionals
Thixoforming is a powerful technology that combines the best of casting and forging, enabling the production of complex, near-net-shape parts with lower porosity, better weldability, and longer tool life. However, its application has been largely limited to cast aluminum alloys like A356. High-performance wrought alloys such as AA7075, prized in the aerospace and automotive industries for their exceptional strength, have remained a significant challenge.
The primary obstacle is producing a specialized feedstock with a non-dendritic, globular microstructure. Conventional casting of AA7075 results in a dendritic structure that is prone to hot tearing and instability during semi-solid forming. This research tackles this critical industry problem by exploring the cooling slope (CS) casting technique—a simple, cost-effective method—to create a viable thixotropic feedstock from AA7075, paving the way for high-strength, lightweight components.
The Approach: Unpacking the Methodology
The researchers conducted a rigorous experimental study to isolate and quantify the effects of key process variables on the final microstructure of AA7075.
Method 1: Material Characterization
The study used AA7075 wrought aluminum alloy. The material's thermal properties were first established using Differential Scanning Calorimetry (DSC) to precisely determine the solidus (473°C) and liquidus (617°C) temperatures, which is critical for controlling the semi-solid state.
Method 2: Cooling Slope (CS) Casting
About 0.9 kg of AA7075 was melted in a graphite crucible, degassed with argon, and cooled to a specific pouring temperature. The molten metal was then poured onto an inclined, preheated low-carbon steel plate coated with a thin layer of hard chromium to ensure smooth, uninterrupted flow. The semi-solid slurry was collected in a preheated steel mold to form the final billet.
Method 3: Design of Experiments (DOE)
A 3-level factorial design was implemented to systematically test the influence of three critical parameters:
- Pouring Temperature (T): 630°C, 650°C, 670°C
- Slope Length (L): 200 mm, 350 mm, 500 mm
- Slope Angle (θ): 30°, 45°, 60°
The resulting billets were sectioned and analyzed using optical microscopy and image analysis software to measure the two key response variables: average grain size and shape factor (a measure of globularity).
The Breakthrough: Key Findings & Data
The study successfully identified the optimal process parameters and quantified their relative importance, providing a clear roadmap for producing high-quality AA7075 feedstock.
Finding 1: Optimal Process Window for Globular Microstructure
The analysis revealed a distinct set of optimal conditions for achieving the desired microstructure. As shown in the main effects plots in Figure 5, the best results—minimum average grain size and maximum shape factor—were achieved with:
- Pouring Temperature: 650°C
- Cooling Length: 350 mm
- Tilt Angle: 45°
Billets produced under these conditions exhibited the most favorable non-dendritic, globular primary α-Al grains, which are essential for successful thixoforming.
Finding 2: Pouring Temperature is the Most Influential Parameter
The Analysis of Variance (ANOVA) provided a clear statistical breakdown of which factors mattered most. The results, detailed in TABLE 3 and TABLE 4, showed that pouring temperature had the highest statistical and physical significance.
- For average grain size, pouring temperature accounted for 67.32% of the total variation.
- For shape factor, pouring temperature accounted for 47% of the total variation.
In contrast, the tilt angle and cooling length had significantly lower contributions (e.g., tilt angle contributed only 0.31% to grain size variation). This finding confirms that precise temperature control is the most critical element for success.
Practical Implications for R&D and Operations
- For Process Engineers: This study suggests that adjusting pouring temperature to the optimal 650°C is the most effective lever for controlling the final microstructure and ensuring a high-quality thixotropic feedstock for AA7075.
- For Quality Control Teams: The data in Figure 7 and the regression models (Equations 4 and 5) show an extremely high correlation (R² = 0.991 for grain size) between predicted and measured results. This illustrates that the models can be used as a powerful predictive tool to ensure feedstock quality without extensive destructive testing.
- For Design Engineers: The findings indicate that a viable thixotropic feedstock can be produced from high-strength AA7075. This opens the door to designing complex, lightweight, near-net-shape components that leverage the superior mechanical properties of this alloy, which was previously limited by manufacturing constraints.
---
Paper Details
Optimization of the cooling slope casting parameters for producing aa7075 wrought aluminum alloy thixotropic feedstock
1. Overview:
- Title: Optimization of the cooling slope casting parameters for producing aa7075 wrought aluminum alloy thixotropic feedstock
- Author: E.Y.El-Kady, I.S.El-Mahallawi, T.S.Mahmoud, A.Attia, S.S.Mohammed, A.Monir
- Year of publication: 2016
- Journal/academic society of publication: Materials Science An Indian Journal, Volume 14 Issue 8
- Keywords: Cooling slope casting; Wrought aluminum alloys; Microstructure.
2. Abstract:
Thixoforming technology requires a feedstock with a globular microstructure rather than dendritic microstructure used in conventional casting methods. In the present investigation, several AA7075 wrought aluminum alloy feedstock were produced using cooling slope (CS) casting technique at different fabrication conditions. Optimization of the CS castingprocess parameterswas conductedto find out the optimum conditionsthat achieve the best microstructural characteristics of the feedstock. Moreover, correlations for microstructural characteristics as functions of CS casting process parameters were determined. The results revealed that the optimum values of pouring temperature, cooling length and tilt angle were found to be 650 °C, 350 mm and 45°, respectively. Billets fabricated under such conditions showed the minimum average size as well as the maximum shape factor of α-Al primary grains. The pouring temperature is the most influential parameter on both the average grain size and shape factor of the primary α-Al grains.The developed empirical correlations were successfully used to predict the average grain size and shape factor of the AA7075 alloy billets produced using CS casting technique.
3. Introduction:
Thixoforming is a technology for forming alloys in a semi-solid state to produce near-net-shaped products. It addresses problems associated with conventional casting and metal forming by using lower temperatures and less energy. Thixoformed parts exhibit fewer defects, less shrinkage porosity, and provide longer tool life, finding application in the automotive industry. The process involves three steps: producing a feedstock with a non-dendritic microstructure, reheating it to the forming temperature, and forming it in a die-casting machine. While commercially applied to cast alloys like A356 due to their fluidity, these alloys lack the high mechanical properties of wrought alloys such as AA7075 used in aerospace. A key challenge is processing wrought alloys, which are sensitive to temperature fluctuations. The cooling slope (CS) casting technique is a cheap and simple method for producing the required globular feedstock. This investigation aims to study and optimize the CS casting parameters—pouring temperature, cooling length, and slope angle—to achieve the best microstructural characteristics for AA7075 wrought aluminum alloy.
4. Summary of the study:
Background of the research topic:
Successful thixoforming depends on a feedstock with a fine, globular solid phase within a liquid matrix, differing from the dendritic structures of conventional casting. High-strength wrought aluminum alloys like AA7075 are desirable for thixoforming due to their superior mechanical properties, but their processing is challenging.
Status of previous research:
Several methods exist for producing thixotropic feedstock, including magneto-hydrodynamic (MHD) stirring and strain-induced melt activation (SIMA). The cooling slope (CS) casting technique has emerged as a low-cost, simple alternative. While research has been conducted on cast alloys like A356/A357 and some wrought alloys, a systematic optimization of CS parameters for AA7075 was needed.
Purpose of the study:
The study's objective was to determine the significance of CS casting process parameters (pouring temperature, cooling length, slope angle) on the microstructural characteristics of AA7075. The research aimed to identify the optimum combination of these parameters to achieve maximum globularity and minimum grain size of primary alpha-aluminum grains and to develop empirical correlations for predicting these characteristics.
Core study:
The investigation utilized a 3-level factorial design of experiment (DOE) and analysis of variance (ANOVA) to systematically evaluate the effects of the three process parameters. AA7075 billets were fabricated under 27 different conditions. The resulting microstructures were quantitatively analyzed for average grain size and shape factor. Statistical analysis was performed to determine the contribution of each parameter and their interactions, leading to the identification of optimal settings and the formulation of predictive regression models.
5. Research Methodology
Research Design:
A 3-level (3³) factorial design of experiment was employed. This design involves three factors (pouring temperature, cooling length, slope angle), each set at three levels (minimum, mean, maximum), resulting in a total of 27 experimental runs. This approach allows for the study of the main effects of each factor as well as their interactions.
Data Collection and Analysis Methods:
AA7075 alloy was melted and cast using a cooling slope apparatus. The resulting cylindrical billets (50 mm diameter) were sectioned at top, middle, and bottom locations. Samples for metallographic examination were taken from the center, mid-radius, and radius of these sections. The samples were prepared using standard grinding and polishing techniques and etched with Keller's etchant. Microstructural images were captured via optical microscopy. The average grain size of primary α-Al grains was measured using the linear intercept method (ASTM-E112-96), and the shape factor was calculated using the formula SF = 4πA/P². The experimental data was analyzed using ANOVA to determine the statistical significance of each parameter.
Research Topics and Scope:
The research was confined to AA7075 wrought aluminum alloy. The independent variables investigated were:
- Pouring temperature (T): 630°C, 650°C, 670°C
- Slope Length (L): 200 mm, 350 mm, 500 mm
- Slope Angle (θ): 30°, 45°, 60°
The response variables (dependent variables) were the average grain size and average shape factor of the primary α-Al grains.
6. Key Results:
Key Results:
- The optimal CS casting parameters for producing AA7075 thixotropic feedstock were determined to be a pouring temperature of 650°C, a cooling length of 350 mm, and a tilt angle of 45°. These conditions yielded the minimum average grain size and maximum shape factor.
- Pouring temperature was identified as the most influential parameter affecting both grain size and shape factor, with percentage contributions of 67.32% and 47%, respectively.
- Empirical regression models were developed to predict the average grain size and shape factor as a function of the CS casting parameters.
- The models demonstrated high accuracy, with coefficients of determination (R²) of 0.991 for grain size and 0.960 for shape factor, indicating a strong correlation between predicted and experimental values.
Figure Name List:

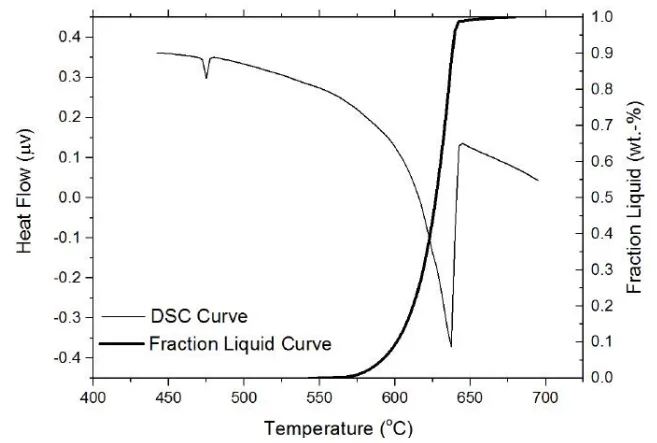

- Figure 1: DSC and liquid weight fraction versus temperature curves for AA7075 wrought Al alloy

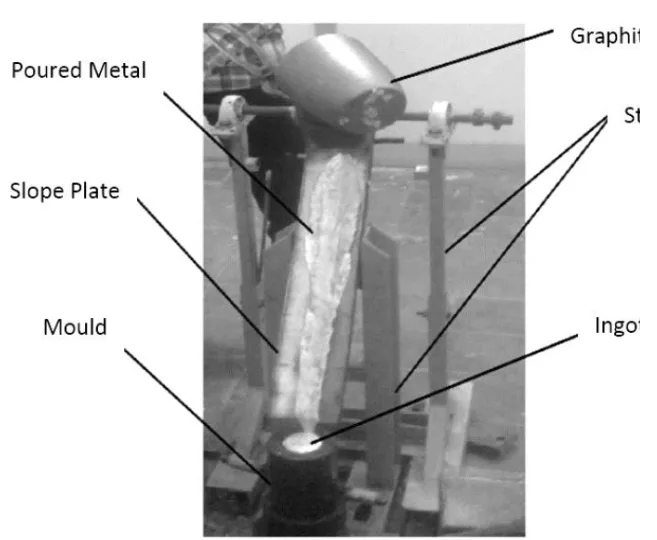

- Figure 2: The CS casting of AA7075 wrought Al alloy

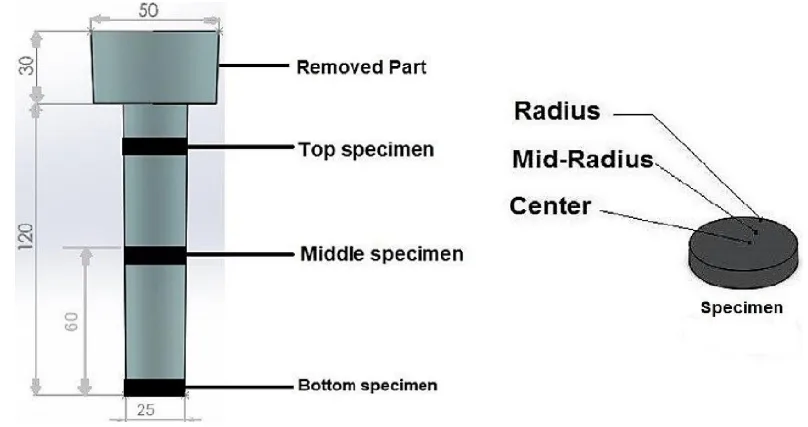

- Figure 3: A schematic illustration of theAA7075 wrought Al alloy CS casting billet showing its main dimensions and the positions of the metallographic specimens. (Dimensions in mm)

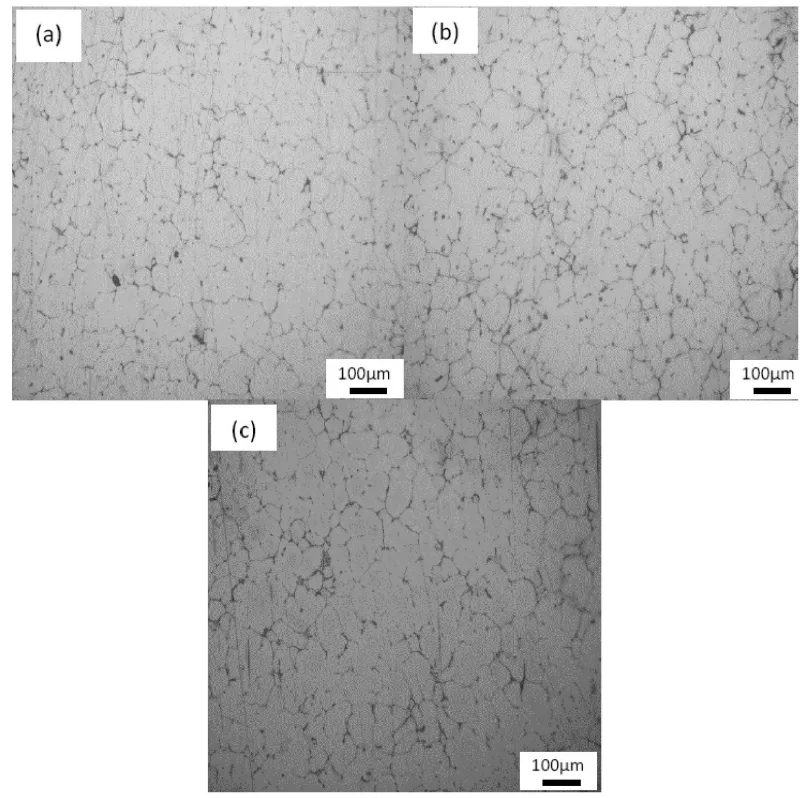

- Figure 4: The microstructure of billets poured at constant pouring temperature of 650°C, constant tilt angle of 30° mm, and several pouring lengths of: (a) 200 mm, (b) 350 mm and (c) 500 mm. The micrographs were captured from bottom and radius positions of the billets

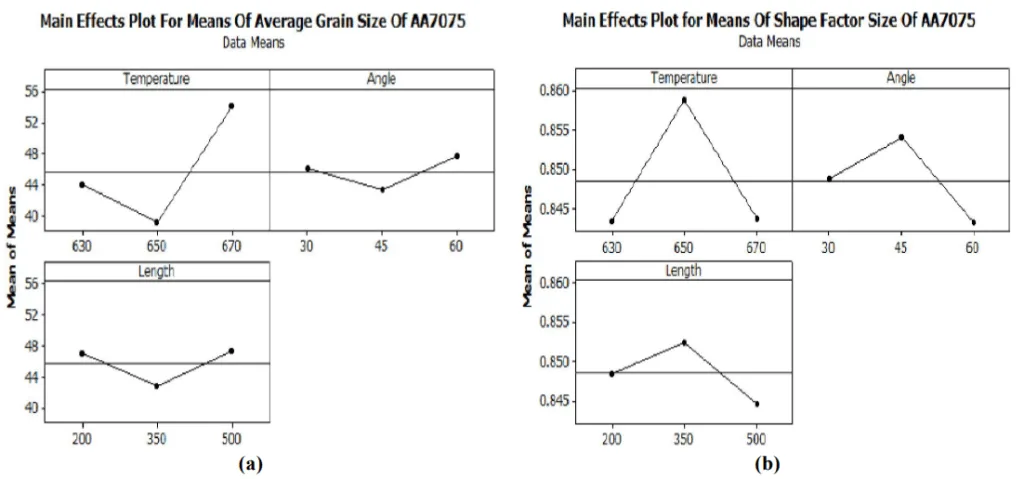

- Figure 5: The main effect plots of the SC casting parameters on the average (a) size and (b) shape factor of the primary α-Al grains
- Figure 6: Main effect plot for S/N ratios of average (a) grain size and (b) shape factor

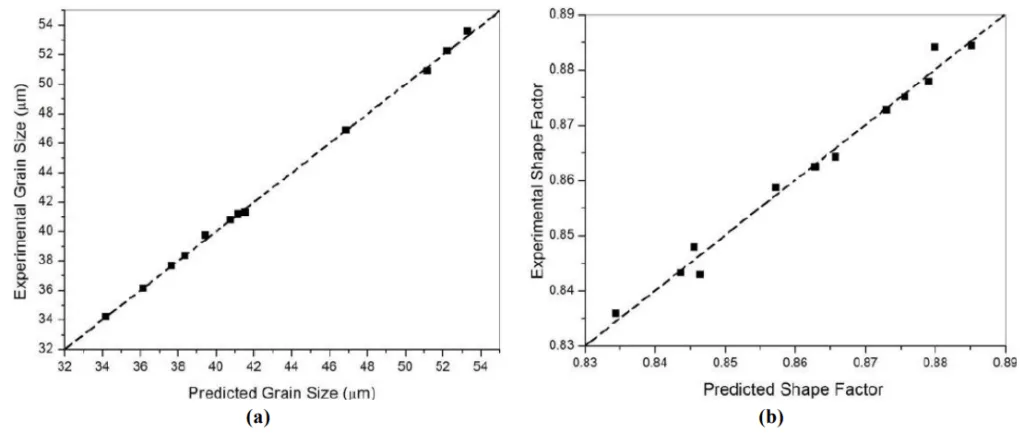

- Figure 7: Plots of the predicted verses measured (experimental) (a) average size and (b) average shape factor of the α-Al primary grains
7. Conclusion:
The study concluded that the optimum values for pouring temperature, cooling length, and tilt angle for CS casting of AA7075 are 650°C, 350 mm, and 45°, respectively. These parameters produce billets with minimum average grain size and maximum shape factor of primary α-Al grains. The pouring temperature has the highest statistical and physical significance on both response variables when compared to tilt angle and cooling length. The developed regression models, with correlation coefficients of 0.991 (grain size) and 0.960 (shape factor), effectively predict the microstructural characteristics, confirming their utility.
8. References:
- [1] Kaio Niitsu Campo, Cecília Tereza Weishaupt Proni, Eugênio José Zoqui; “Influence of the processing route on the microstructure of aluminum alloy A356 for thixoforming", Materials Characterization", 85, 26–37 (2013).
- [2] Z.Fan; "Semisolid metal processing”, International materials reviews, 47, 49-85 (2002).
- [3] D.H.Kirkwood; “Semisolid metal processing", International materials reviews, 39, 173-189, (1994).
- [4] K.S.Alhawari, M.Z.Omar, M.J.Ghazali, M.S.Salleh, M.N.Mohammed; "Evaluation of the microstructure and dry sliding wear behaviour of thixoformed A319 aluminium alloy”, Materials & Design, 76, 169–180 (2015).
- [5] I.S.El-Mahallawi, T.S.Mahmoud, A.M.Gaafer, F.H.Mahmoud; "Effect of pouring temperature and water cooling on the thixotropic semi-solid microstructure of A319 aluminium cast alloy”, Materials Research, 18(1), 170-176 (2015).
- [6] Yucel Birol; “A357 thixoforming feedstock produced by cooling slope casting”, Journal of Materials Processing Technology, 186(1–3), 94–101 (2007).
- [7] Prosenjit Das, K.Sudip, Samanta, Reeta Das, Pradip Dutta; "Optimization of degree of sphericity of primary phase during cooling slope casting of A356 Al alloy: Taguchi method and regression analysis”, Measurement, 55, 605–615 (2014).
- [8] E.J.Zoqui; “Alloys for semisolid processing", Comprehensive materials processing, Casting, Semi-Solid Forming and Hot Metal Forming, 5, 163–190 (2014).
- [9] H.V.Atkinson, P.Kapranos, D.Liu, S.A.Chayong, D.H.Kirkwood; “Thixoforming of normally wrought aluminium alloys", Materials Science Forum, 396-402, 131-136 (2002).
- [10] S.Chayong, H.V.Atkinson, P.Kapranos; "Thixoforming 7075 aluminium alloys”, Materials Science and Engineering A, 390, 3-12 (2005).
- [11] G.Vaneetveld, A.Rassili, K.Lecomte-Beckers, H.V.Atkinson; “Thixoforging of 7075 aluminium alloys at high solid fraction", Solid State Phenomena, 116-117, 762-765 (2006).
- [12] S.Deepak Kumar, Pandu R.Vundavilli, SisirMantry, A.Mandal, M.Chakraborty; “A Taguchi optimization of cooling slope casting process parameters for production of semi-solid A356 alloy and A356-5TiB, in-situ composite feedstock”, Procedia Materials Science, 5, 232-241 (2014).
- [13] Hamed Khosravi, Reza Eslami-Farsani, Mohsen Askari-Paykani; “Modeling and optimization of cooling slope process parameters forsemi-solid casting of A356 Al alloy”, Trans.Nonferrous Met.Soc.China, 24, 961"968 (2014).
Expert Q&A: Your Top Questions Answered
Q1: Why was a chromium-coated steel plate used for the cooling slope instead of another material?
A1: The paper states that the low carbon steel plate was coated with a thin layer of hard chromium "in order to avoid sticking of the molten metal on the slope plate and to facilitate a trouble free melt flow." This surface treatment is critical for ensuring that the semi-solid slurry moves smoothly down the plate without interruption, which is essential for uniform cooling and nucleation to achieve the desired globular microstructure.
Q2: The paper mentions microstructural variation within the cast billet. What was the observed trend?
A2: The researchers observed variations in the size and shape of α-Al primary grains in both radial and axial directions. Specifically, "The radius positions of the billets showed finer primary α-Al grains than the mid-radius and center zones." This variation is attributed to the existence of a cooling rate gradient across the billet during its final solidification in the mild steel mold.
Q3: How was the "shape factor," or globularity, of the grains quantified in this study?
A3: The shape factor (SF) was determined using the standard image analysis equation: SF = 4πA/P², where 'A' is the area of the α-Al grain and 'P' is its perimeter. This formula provides a numerical value for sphericity, where a perfect circle would have a shape factor of 1. A higher shape factor indicates a more rounded, globular grain, which is ideal for thixoforming.
Q4: What is the statistical significance of pouring temperature compared to the other process parameters?
A4: The ANOVA results presented in Tables 3 and 4 clearly demonstrate that pouring temperature is the most dominant factor. It accounted for 67.32% of the variation in grain size and 47% of the variation in shape factor. In comparison, the tilt angle and cooling length had contributions of less than 4% each, making their individual effects statistically much less significant than temperature.
Q5: How reliable are the predictive equations for grain size and shape factor developed in the study?
A5: The regression models are highly reliable. The paper reports that the coefficient of determination (R²) for the grain size equation is 0.991 and for the shape factor equation is 0.960. An R² value close to 1.0 indicates an excellent fit, meaning the models can predict the experimental outcomes with a very high degree of accuracy. This is visually confirmed in Figure 7, where the plotted points for predicted vs. measured values fall very close to the ideal 45° line.
Conclusion: Paving the Way for Higher Quality and Productivity
The challenge of producing a viable thixotropic feedstock from high-strength AA7075 has been a significant barrier to its wider use in near-net-shape manufacturing. This research provides a clear and practical solution through Cooling Slope Casting Optimization. By identifying the optimal process window and confirming that pouring temperature is the most critical control parameter, this study equips engineers with the knowledge to reliably produce high-quality, globular feedstock. The development of accurate predictive models further enhances process control, reducing trial-and-error and improving consistency.
At CASTMAN, we are committed to applying the latest industry research to help our customers achieve higher productivity and quality. If the challenges discussed in this paper align with your operational goals, contact our engineering team to explore how these principles can be implemented in your components.
